Monday 22 February 2016

Raspbian Jessie Lite

A new lightweight version of Raspbian Jessie has been released. It looks promising for “headless” applications (no monitor, keyboard or mouse). I fired it up on my Raspberry Pi Model B.

You can get Raspbian Jessie Lite from here. At the time of writing, the version was dated 2016-02-09 and the kernel version was 4.1. The ZIP download weighed in at 365MB. This contained a similarly sized compressed IMG file. Next, I had to write this image to SD card.

Note that choosing a reliable SD card is something of a science, with guidance available from various sources. For example, see here. I chose an 8GByte Lexar micro SD card that came bundled with an SD card adapter. I bought it from Amazon because of their no-fuss returns policy:

Lexas 8GB microSDHC card with SD adapter
Lexas 8GB microSDHC card with SD adapter
The procedure for writing to image to SD cards can be found  here. I followed the Windows recipe, first extracting the IMG from the ZIP, and then running Win32DiskImager to write the IMG to my SD card:

Win32DiskImager application
Win32DiskImager application

It took a few minutes to get these steps done. I then inserted the freshly written SD card in the Pi, connected it to the HDMI input of my monitor, and plugged in an ethernet cable. Boot messages appeared on the monitor within a couple of seconds of power on. The login prompt appeared after maybe 20-30 seconds:

First Boot
First Boot

I then switched my monitor back to displaying the output from my desktop PC, aiming to use an ssh client to interact with the now fully headless Pi. There are plenty to choose from; my favourite is PuTTY.

To make life easier on my LAN, I use static IP addresses for various devices, such as my NAS, and including my Raspberry Pi. To do this, I reserve an address in my DHCP server’s configuration, linking the device's MAC address to a fixed IP address. For the Pi I chose 192.168.1.9, as shown on the PuTTY configuration dialog:


PuTTY Launch Window
PuTTY Launch Window

After double-clicking the raspberrypi entry (to Open it), I blew past the ensuing security warning by clicking Yes. A terminal window then appeared, and I was then able to log in with the usual default credentials (username = pi, password = raspberry):

PuTTY Terminal Window
PuTTY Terminal Window

Many images assume a 2GB SD card and size things accordingly, meaning wasted space on larger cards. I checked, and this was indeed the case:


pi@raspberrypi:~ $ df -h
Filesystem      Size  Used Avail Use% Mounted on
/dev/root       1.3G  912M  281M  77% /
devtmpfs        214M     0  214M   0% /dev
tmpfs           218M     0  218M   0% /dev/shm
tmpfs           218M  4.4M  214M   3% /run
tmpfs           5.0M  4.0K  5.0M   1% /run/lock
tmpfs           218M     0  218M   0% /sys/fs/cgroup
/dev/mmcblk0p1   60M   20M   41M  34% /boot


raspi-config can be used to fix this:


pi@raspberrypi:~ $ sudo raspi-config


You simply highlight option 1 and hit Enter...

raspi-config in action
raspi-config in action

...and a few seconds later you can reboot and the job is done. I did this, and checked the outcome:


pi@raspberrypi:~ $ df -h
Filesystem      Size  Used Avail Use% Mounted on
/dev/root       7.3G  913M  6.1G  13% /
devtmpfs        214M     0  214M   0% /dev
tmpfs           218M     0  218M   0% /dev/shm
tmpfs           218M  4.4M  214M   3% /run
tmpfs           5.0M  4.0K  5.0M   1% /run/lock
tmpfs           218M     0  218M   0% /sys/fs/cgroup
/dev/mmcblk0p1   60M   20M   41M  34% /boot


Notice that /dev/root now has 6.1G available.

I will be trying to use the resulting setup for a few embedded projects.

AVR Studio 7 and the Arduino Mega 2560

I've heard of the Arduino family of microcontroller boards but have not worked with one until today. I decided to take a closer look because I do know the Atmel AVR, in particular the 8-bit mega family, and an Arduino is a reasonably cheap way to get one to experiment with. I chose an Arduino Mega 2560 board.

My AVR experience is based on various editions of Atmel's Studio IDE - so I wanted to find out how to use it with the Arduino hardware, ignoring the Arduino software as much as possible.

Here are the steps I followed to run a simple C program. My starting point was a fresh install of Atmel Studio (version 7.0.783) and the Arduino software (version 1.6.7) on a desktop PC running Windows 10 - and (of course) an Arduino Mega 2560 connected to the PC via USB, with it's green power LED on.

(Note that you can click on an image to see a full size / full resolution version.)

  • on the Start Page, select New Project...
    AVR Studio Start Page
    Atmel Studio 7 - Start Page
  • in the New Project dialog, select GCC C Executable Project, specify a Name and a Location then click OK
    Atmel Studio 7 - New Project dialog
    Atmel Studio 7 - New Project dialog
  • in the Device Selection dialog, select ATmega2560 (the type of AVR microcontroller used on the Arduino board) then click OK
    Atmel Studio 7 - Device Selection dialog
    Atmel Studio 7 - Device Selection dialog
  • a minimal, template project is created, ready for you to enter code...
    Atmel Studio 7 - Virgin Project
    Atmel Studio 7 - Virgin Project
  • choose test Properties (assuming your project is called test) from the Project menu, then select Toolchain, and under AVR/GNU C Compiler select Symbols
    Atmel Studio 7 - Project Properties tab
    Atmel Studio 7 - Project Properties tab
  • in the Defined Symbols (-D) box, click the Add Item button and enter F_CPU=16000000UL (this specifies the processor clock frequency in Hertz; for the Arduino Mega 2560 this is 16MHz - the "UL" suffix means Unsigned Long)
    Atmel Studio 7 - adding a defined symbol
    Atmel Studio 7 - adding a defined symbol
  • select the main.c tab and enter enough C code to see life signs - mine pulses the "L" LED once then twice, over and over
    Atmel Studio 7 - entering a simple C test program
    Atmel Studio 7 - entering a simple C test program

#include <avr/io.h>
#include <util/delay.h>

int main(void)
{
 DDRB |= (1 << PORTB7); // PORTB7 direction = out

 while (1)
 {

  // 1 pulse
  PORTB |= (1 << PORTB7); // PORTB7 hi = LED L on
  _delay_ms(500); // 0.5 sec
  PORTB &= ~(1 << PORTB7); // PORTB7 hi = LED L off

  // delay
  _delay_ms(2000); // 2 sec

  // 2 pulses
  PORTB |= (1 << PORTB7);
  _delay_ms(500);
  PORTB &= ~(1 << PORTB7);
  _delay_ms(500);
  PORTB |= (1 << PORTB7);
  _delay_ms(500);
  PORTB &= ~(1 << PORTB7);

  // delay
  _delay_ms(2000);
 }
}

  • now the interesting part - adding support for the Arduino's programming mechanism, which requires the use of the avrdude utility that is included in the Arduino software installation

    • first, identify the COM port that the Arduino is connected to by running the Device Manger - in my case it was COM3...
      Device Manager (Windows 10) showing Arduino COM port
      Device Manager (Windows 10) showing Arduino COM port
    • choose External Tools... from the Tools menu
      Atmel Studio 7 - External Tools dialog (before)
      Atmel Studio 7 - External Tools dialog (before)
    • in the External Tools dialog...
      • change the Title to Program
      • enter the following in the Command box:

        c:\Program Files (x86)\Arduino\hardware\tools\avr\bin\avrdude.exe


      • enter the following in the Arguments box, changing -P COM3 to match the COM port that the Arduino is connected to on your machine:

        -v -C"C:\Program Files (x86)\Arduino\hardware\tools\avr\etc\avrdude.conf" -p atmega2560 -c wiring -P COM3 -b 115200 -D -U flash:w:$(TargetDir)$(TargetName).hex:i


      • check the Use Output window box
      • click OK
        Atmel Studio 7 - External Tools dialog (after)
        Atmel Studio 7 - External Tools dialog (after)
    • there is now a Program option on the Tools menu which will flash the compiled code into the Arduino board - let's add a corresponding shortcut to the UI:
      • select Add or Remove Buttons to the right of No Tool, then Customize...
        Atmel Studio 7 - adding a custom button
        Atmel Studio 7 - adding a custom button
      • the Customize dialog appears:
        Atmel Studio 7 - Customize dialog
        Atmel Studio 7 - Customize dialog
      • click Add Command...
      • under Categories select Tools
      • under Commands scroll down and select External Command 1

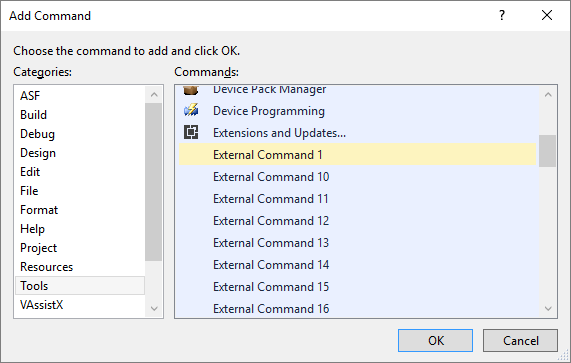

        Atmel Studio 7 - Add Command dialog
        Atmel Studio 7 - Add Command dialog
    • click OK then Close the Customize dialog
    • there is now a Program button left of the device (ATmega2560) button
  • to build the code, choose Build Solution from the Build menu (or hit F7):
    Atmel Studio 7 - after build
    Atmel Studio 7 - after build
  • now program the board by clicking the Program button - this will produce some rapid progress messages from the avrdude programming utility in the Output pane:
    Atmel Studio 7 - after programming
    Atmel Studio 7 - after programming
  • voila - you should see the "L" LED blinking once then twice, repeatedly
